TeleToyland Sandbox How It Works: Step 4


Step 4: Y Stage

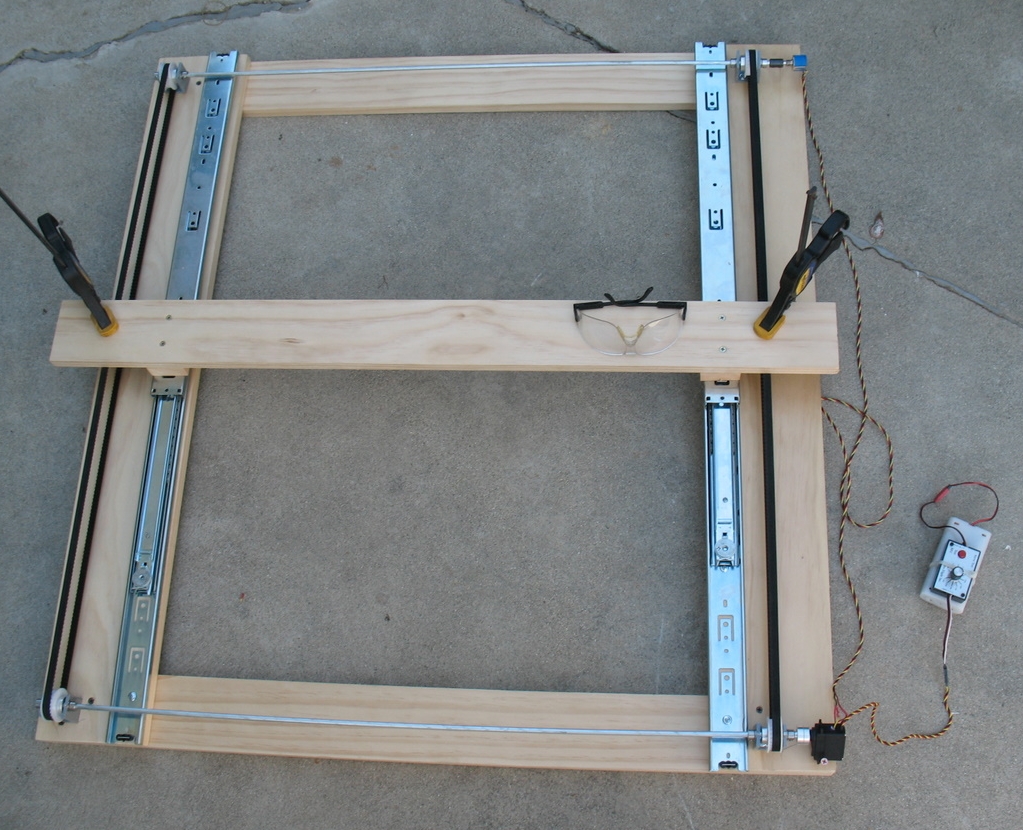

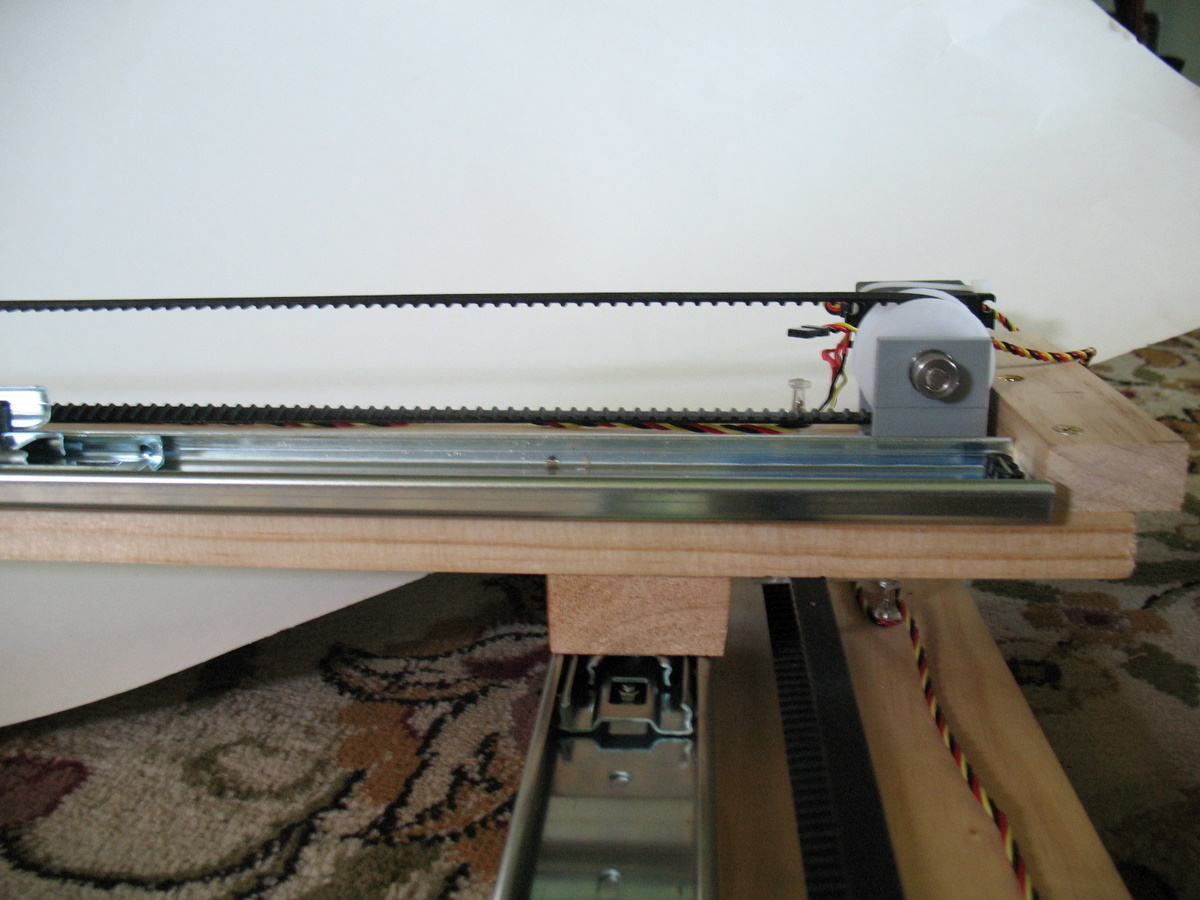

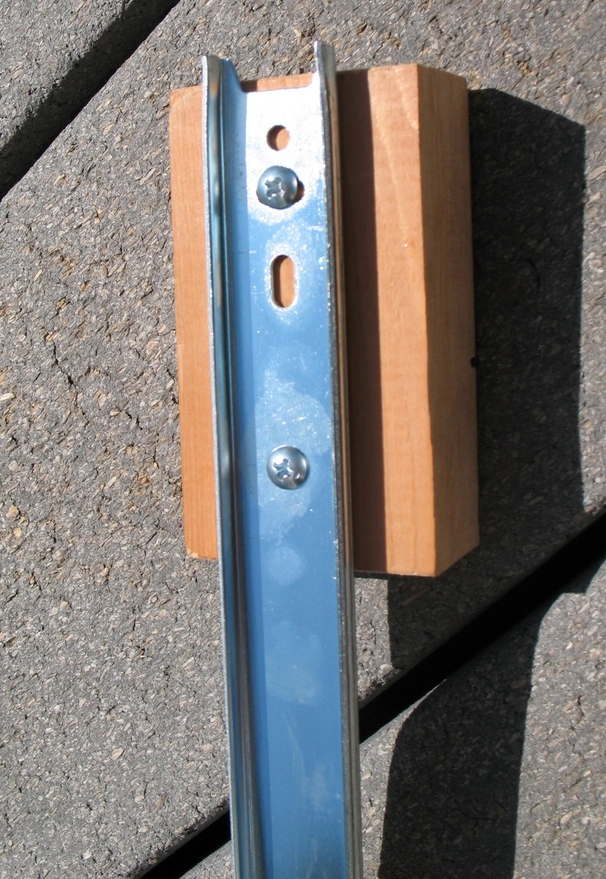

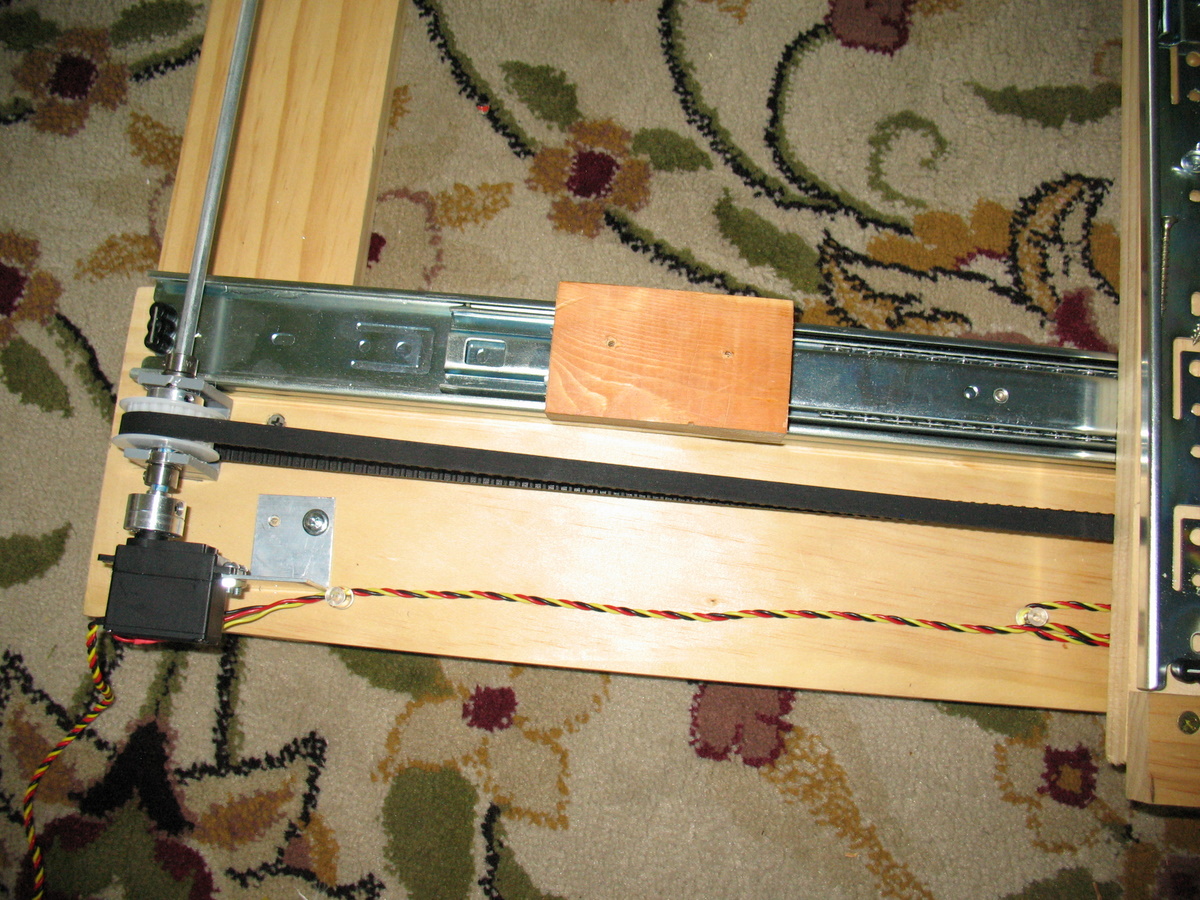

To the top of the two drawer glides, mount a small filler block (we used some scrap 1" thick wood, which allowed the Y stage to clear the X stage belt), then the Y stage board - we used the 1x4 for that since a thinner board gives you a bit more work space. When mounting the filler blocks, it was handy that the top slide had a plastic release catch so we could pull the glide off, attach the block, then slide ti back in again.

Mount two more timing belt pulleys and a timing belt on this stage, leaving room for the drawer glides on one side.
